1.What Is Air Insulated Metal-Clad Switchgear?
2.Differences 1-2 - Breaker Mounting, Isolation, and Testing
3.Differences 3-5 - Space, Maintenance, and Recovery
4.Differences 6-7 - Cost, Application Fit, and Final Selection
5.SHENGTE KYN28A-12 Air Insulated Switchgear
Choosing air-insulated metal-clad switchgear is an operational and lifecycle decision. The construction affects maintenance access, outage planning, panel-room space, spare strategy, and long-term cost. A practical air insulated switchgear definition is a metal-enclosed assembly that uses atmospheric air as the main insulation medium while receiving, distributing, switching, controlling, measuring, and protecting electrical circuits. This guide introduces the equipment, compares seven purchase-critical differences, and then presents a SHENGTE option.
Air insulated metal-clad switchgear is a metal-enclosed power assembly in which atmospheric air insulates conductors and switching equipment. Metal compartments separate the busbar, circuit breaker, cables, and controls. The lineup receives and distributes power, switches circuits, supports measurement and protection, and isolates faulted sections.
For B2B buyers, this means a complete engineered lineup rather than a standalone breaker. Ratings, clearances, interlocks, protection, grounding, cable access, and operating procedures affect the finished equipment.
The main components include the busbar, circuit breaker, cable compartment, measurement devices, protection and control equipment, earthing switch, metal partitions, shutters, and mechanical or electrical interlocks. Together, these parts coordinate switching, protection, grounding, and access to energized areas.
Breaker mounting is the first major construction choice. In fixed metal-clad switchgear, the breaker remains installed in the cubicle and uses the lineup's isolation scheme. A withdrawable metal-clad switchgear arrangement places the breaker on a truck or handcart and provides service, test, and isolated positions. Both can meet the same electrical duty, but the operating workflows differ.
The two common constructions are fixed and withdrawable. Fixed equipment uses fewer moving assemblies, while withdrawable equipment improves breaker access and exchange flexibility. Selection should follow the network duty, room layout, maintenance resources, and acceptable outage duration rather than the label alone.
A fixed breaker stays in the service cubicle, supporting a direct mechanical layout. A withdrawable breaker rides on a truck or handcart and moves between defined positions. The withdrawable mechanism requires guides, racking components, shutters, position indicators, and interlocks; the fixed arrangement relies more on installed isolation devices and safe access procedures.
A withdrawable unit can enter a test position, allowing secondary control and protection checks while the primary circuit is disconnected. A fixed unit uses the isolation and testing scheme built into the lineup, which may require more in-cubicle work or external isolation equipment.
Neither design removes the need for lockout, voltage verification, grounding, interlock checks, and trained operators. Compare both forms of air-insulated metal-clad switchgear under equal voltage, current, short-circuit, enclosure, internal-arc, and environmental requirements.
Fixed equipment has fewer moving assemblies and may suit a compact room. Withdrawable air-insulated metal-clad switchgear needs racking travel, shutters, position indication, interlocks, and a safe service aisle for breaker handling. Actual footprint still depends on ratings, cable routing, and compartment design, so fixed equipment is not automatically smaller.
A withdrawable breaker can be removed and inspected in a suitable service area, reducing work inside the lineup and making planned exchange more predictable. A fixed breaker remains in the cubicle, so maintenance may require wider isolation and more work around installed primary connections.
Maintenance is not limited to the breaker. Busbars, cable terminations, protection circuits, shutters, grounding components, and interlocks may require separate isolation and testing. Compare the complete procedure rather than assuming a removable breaker solves every outage problem.
A compatible spare truck and breaker can shorten breaker-specific recovery after safe isolation and verification. The benefit does not cover busbar, cable, protection, shutter, or interlock faults. Fixed equipment can remain dependable, but breaker replacement usually needs more in-panel work. Site access, maintenance capability, spare policy, and outage limits determine whether withdrawable flexibility has value.
Fixed construction often has lower initial mechanical complexity because the lineup needs no breaker truck, racking system, or related handling provision. Withdrawable construction costs more, but faster breaker exchange, offline service, or reduced downtime may justify the premium where feeder continuity has high business value.
Fixed air-insulated metal-clad switchgear can suit stable networks, straightforward feeders, restricted space, and infrequent planned maintenance. Withdrawable construction can suit critical feeders, frequent testing, equipment rotation, or compatible spare policies. Before approving either fixed vs withdrawable switchgear arrangement, verify load criticality, switching frequency, shutdown cost, room space, operator training, protection, interlocks, arc safety, standards, and service support.
The insulation medium is a separate decision. Buyers comparing air-insulated switchgear vs gas-insulated switchgear should assess site space, service practices, environmental requirements, and project standards independently.
Request the single-line diagram, ratings, short-circuit duty, entry method, protection philosophy, monitoring scope, room dimensions, and continuity targets. Low initial cost is not useful if the lineup cannot support the maintenance plan. Withdrawable construction is not automatically better when space is constrained, spares are unavailable, or planned outages are acceptable.

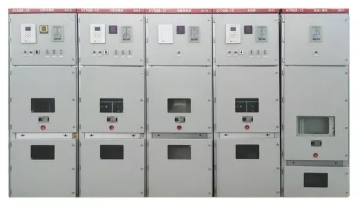

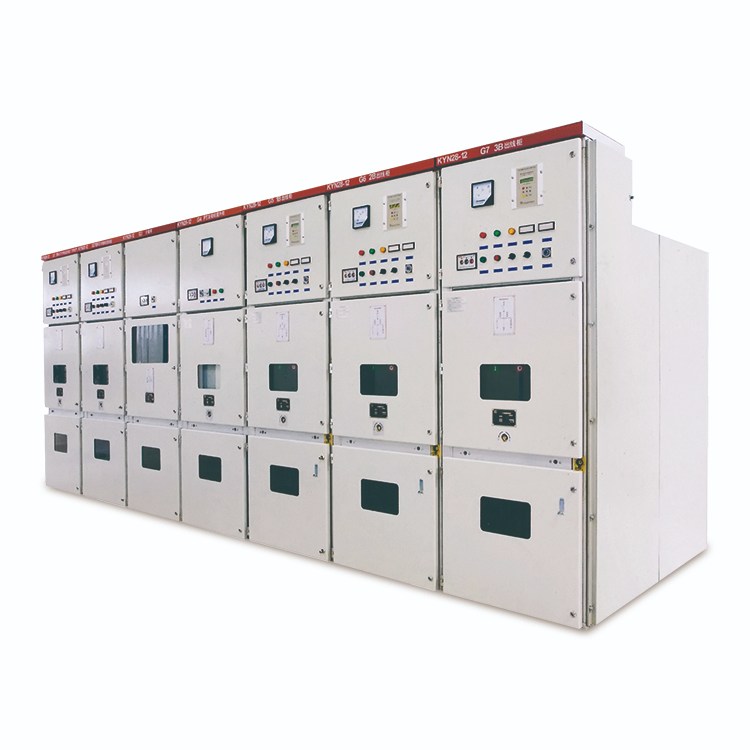

At SHENGTE, we position the KYN28A-12 for projects that value removable breaker access. Our KYN28A-12 indoor metal-clad withdrawable high-voltage switchgear is a 12 kV indoor air-insulated switchgear option for power reception, distribution, and large-motor starting in power plants, industrial facilities, and mining enterprises. In secondary substations, the equipment supports control, protection, monitoring, and measurement.
The KYN28A-12 can use VS1 (ZN63A-12), VD4, HS (ZN82-12), or VEP (ZN96-12) vacuum circuit-breaker options. When specifying 12kV metal-clad switchgear, confirm the breaker, protection scheme, busbar arrangement, cable termination, and fault duty against the approved single-line diagram.
Cabinet options include widths of 800 or 1000 mm, depths of 1500, 1660, or 1800 mm by cable or overhead arrangement, and a height of 2300 mm. We ask buyers to provide the single-line diagram, ratings, fault duty, protection and monitoring requirements, entry method, layout constraints, and continuity targets. This review keeps the KYN28A-12 aligned with the project.
There is no universal winner. Fixed equipment favors simple mechanics, compact planning, and lower initial cost; withdrawable equipment favors breaker access, testing positions, and replacement flexibility. Match all seven differences in air-insulated metal-clad switchgear to maintenance capability, downtime tolerance, space, electrical duty, and lifecycle economics. When a 12 kV withdrawable arrangement fits, SHENGTE can review the system data and configure the KYN28A-12 for the indoor application.
