Maintenance Practices for Oil-Filled Pad Mounted Transformers
Enhancing Transformer Reliability Through Proper Oil Management
Oil-filled transformers are vital parts of today’s electrical systems, and their effectiveness relies greatly on the quality of the transformer oil inside them. Especially in oil filled pad mounted transformers, this unique oil performs several tasks to guarantee smooth operation, safety, and durability. This guide dives into the importance of distribution transformer oil, its various kinds and features, factors that impact its performance, care routines, and how good oil management boosts transformer dependability.
Transformer oil is absolutely necessary for keeping power distribution systems working well and staying strong.
The pad mounted transformer, often called the American Box Transformer or combined transformer, acts as a key power source in cable networks. With its completely sealed design, the oil tank provides excellent insulation and heat release for the transformer oil inside. This setup not only shields the inner parts but also ensures safe use in busy city areas.
Transformer oil serves many purposes. It keeps internal parts cool by spreading out the heat created during use. It also separates high-voltage sections from each other and from grounded pieces. Plus, it stops electric sparks during switching or problems, helping everything run smoothly.

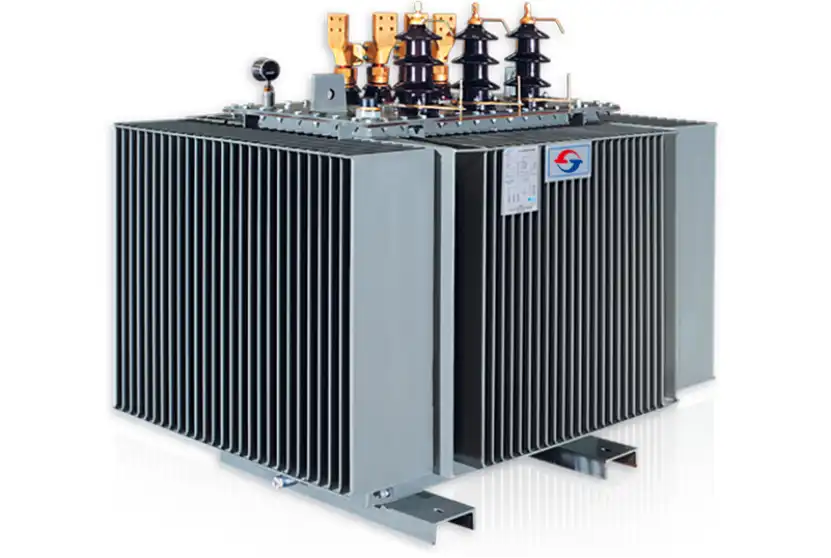

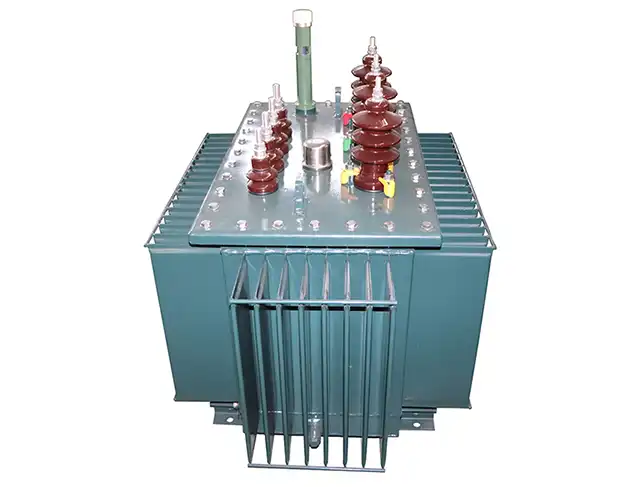

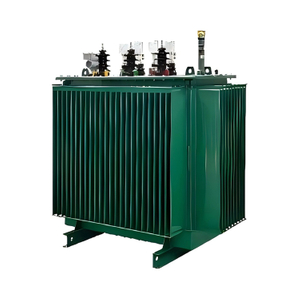

In oil immersed transformers, oil is the main shield and cooling agent. The sealed build keeps the transformer oil away from outside air. This makes the transformer safer, more trustworthy, and simpler to look after.
The state of distribution transformer oil directly affects how well energy is used and how long the equipment lasts. This oil has a thin texture, transfers heat nicely, and insulates well. It protects the core and windings, slows down the wear of insulating materials, and helps the transformer last longer. When taken care of properly, it cuts down on energy waste like no-load and load losses while stopping early wear.
Knowing the different kinds of oils used in transformers helps pick the best one for specific needs.
Mineral-based oils come from processed crude oil. They are cheaper but not as kind to the environment. Synthetic oils handle heat better and resist breaking down over time, though they cost more. The decision depends on needs like temperature limits or eco-rules.
Several traits decide how well distribution transformer oil works in different situations.
Dielectric strength shows how much an oil can stand up to electrical stress without failing. Strong dielectric power means better separation between live parts.
A thinner oil helps move heat away more easily through currents inside the tank. Resistance to breaking down over time matters too. When oil breaks down, it creates acids and gunk that mess up cooling.
The spiral coil with a long oil path works better at losing heat, especially with oils that have the right thickness.
Water in the oil cuts down its strength to insulate and raises rust risks. High acid levels cause buildup that blocks paths and harms insulation over time.
Even top-notch oils wear out over time because of different stresses during use.
Constant changes in load lead to shifting temperatures. This speeds up heat damage. Over time, it weakens the oil’s ability to insulate due to chemical changes.
Water sneaking in from bad seals or damp air lowers insulation strength a lot. Tiny bits from old paper insulation or metal wear create risky paths for electricity inside the transformer.
Breaking down over time causes acids to form, which then turn into gunk inside cooling paths. The corrugated oil tank, made from strong cold-rolled steel on a special production line, helps cut down on this by limiting air contact in a closed space.
Regular care is a must to keep transformers with insulating fluids reliable for a long time.
Doing checks often helps spot early trouble before it turns into big failures.
DGA finds gases like hydrogen or acetylene made from breakdowns under electric stress. These gases point to sparks or overheating inside the transformer.
Furan bits in the oil show how much the paper insulation has worn out. This is key to figuring out how much life is left in the equipment.
IFT checks measure dirt levels by looking at tension between water and oil. Low tension means there’s a lot of dirt or breakdown, and action is needed.
Filtering takes out tiny bits, while drying under vacuum gets rid of water. Fixing up the oil restores things like acid levels or resistance to breakdown without swapping it all out. This saves money and extends use.
If fixing doesn’t bring back the needed insulation strength or acid balance, even after many tries at cleaning, a full swap is needed. This prevents dangerous breakdowns.
Transformer oils need careful handling because they can catch fire and harm the environment.
Keep them in closed containers far from fire risks. Use grounding when moving oil to avoid static sparks. Label containers clearly with danger warnings as per local rules.
Even though mineral oils don’t catch fire easily (around 140°C), they can burn in fault conditions. Following fire safety rules like NFPA is a must. Spill control systems are also needed to stop leaks from harming soil or water.
Knowing why failures happen helps take action before lasting damage sets in.
Water getting in is a top reason for insulation failure. Too much heat stress comes next. It causes carbon buildup near windings, making risky electric paths in the insulation.
Water lowers the fire point and boosts small electric discharges. Too much heat speeds up chemical wear, creating acids that rust metal parts inside. Both issues cut equipment life short if ignored.
Smart care habits help equipment last longer and cut surprise breakdowns in power systems.
Setting up regular checks (every few months or yearly, based on usage) builds a record for spotting future issues. This allows planning fixes before things break down completely.
New sensors in pad mounted transformers watch things like heat rise or gas levels in real time. They send alerts through SCADA systems if something’s off, so workers can act fast. We have a skilled setup team with lots of know-how.
As a well-known maker of distribution tools, including pad mounted transformers, SHENGTE stands out.
Guangdong Shengte Electric Co., Ltd. is based in Danzao Town, Nanhai District, Foshan City. We focus on creating new tech through ties with leading schools in China. This helps us build modern answers for city power needs. We have a skilled research and development group.

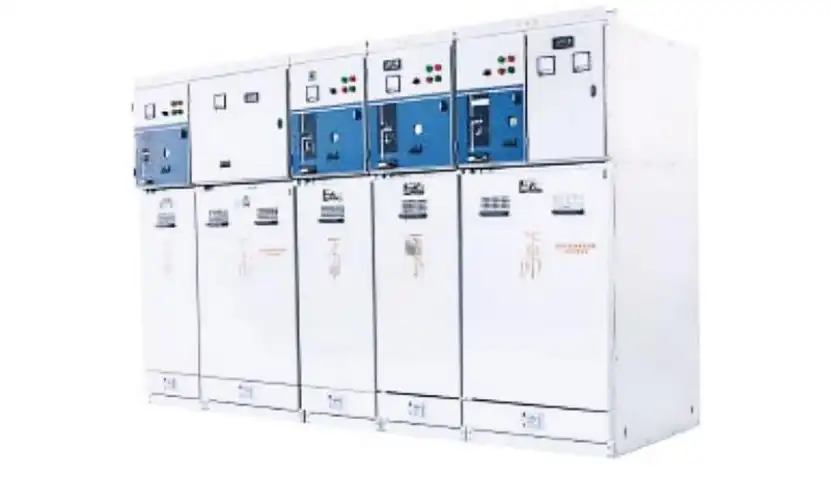

Our products cover dry type transformers, substations, and Electrical Switchgear—all meeting CE/CCC/IEC standards. We offer full solutions with expert setup help. Our experienced team is ready to assist.
Q1: How often should I check my distribution transformer oil?
A: It’s a good idea to do simple tests like water content or insulation strength once a year. But if the transformer works under tough conditions or heavy loads, do DGA tests every three months to catch issues early.
Q2: Which is better—mineral-based or synthetic transformer oils?
A: Mineral-based oils cost less and work fine for normal jobs. Synthetic oils handle heat better, so they’re great for hot places or areas where the environment matters, even if they cost more at first.
Q3: Can I swap out bad transformer oil on my own?
A: Small cleaning jobs can be done with the right skills and tools. But a full oil change should be left to pros. They follow eco-rules and handle fire risks during draining and refilling.
