From the steady power flow that runs through your home's outlets to the bright lights that light up a whole city skyline, all of it relies on solid switchgear. But when people pick between low-voltage (LV) and high-voltage (HV) switchgear, lots of engineers, project leaders, and buying teams get mixed up. The choice goes beyond just voltage amounts; it also covers safety, how well it works, and costs over time. This guide explains the main differences between LV and HV switchgear, and it pulls from actual uses in underground substations and transformer substations. We will look at how pad-mounted transformers and compact substation transformers play a part, mainly in box-type transformer substations. By the time you finish, you will have a straight way to choose the best system for what you need, if it is for a little business spot or a big factory area.

The Basic Difference Between LV and HV Switchgear

Switchgear serves as the main support for electrical setups, as it manages and guards the power movement. However, the divide between LV and HV does not happen by chance; it comes from how power gets dealt with at various sizes. LV switchgear usually works under 1,000 volts, while HV goes over that, often up to 36 kV or more in networks that spread power. This split is important in places like underground substations, where room is small, or transformer substations that supply whole areas. Knowing where each kind works best helps stop wrong matches that might raise costs or dangers. Now, let us go into the details.

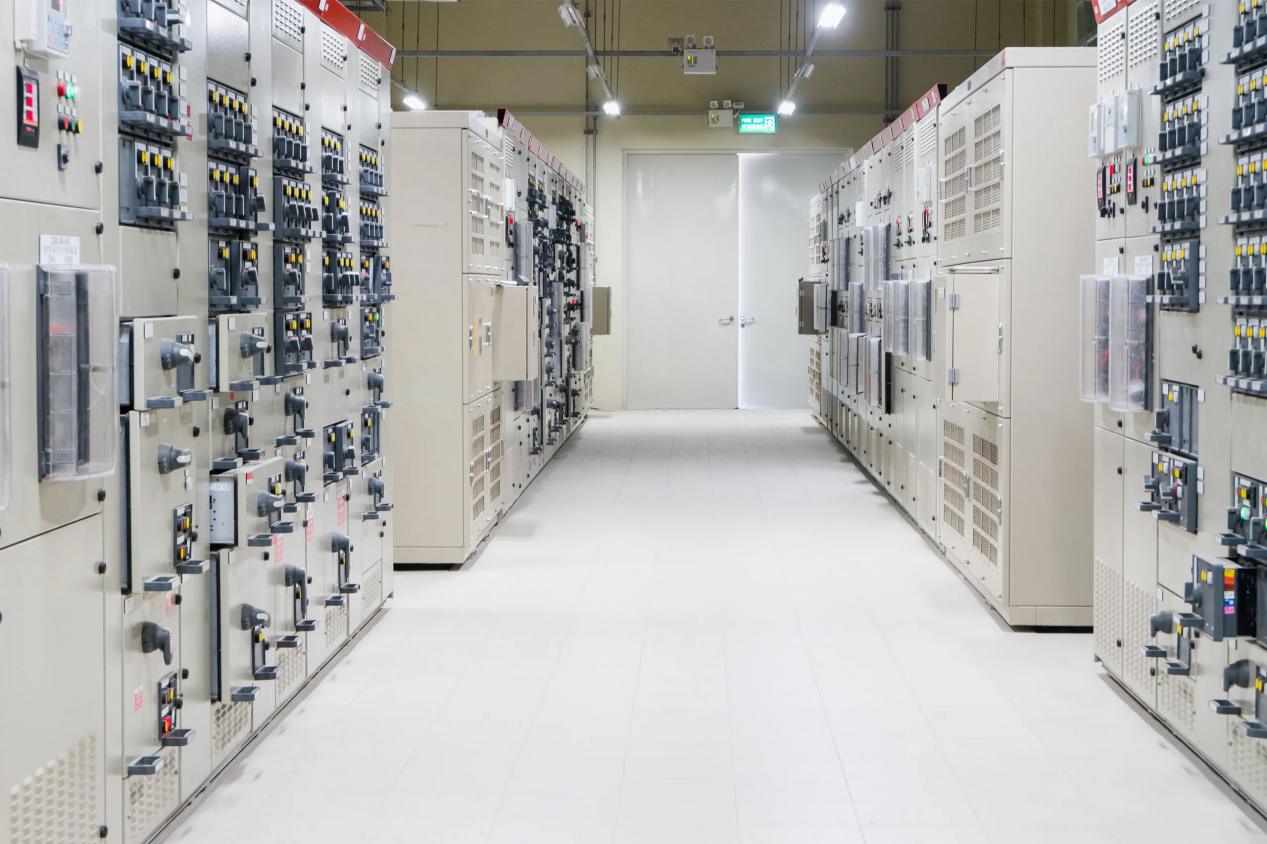

Where LV Dominates

In common uses, LV switchgear stands out because it can adapt easily and is simple to handle. You will see it running office spots, hospitals, and home areas, where the loads stay average and safety comes first. For example, in underground electrical substations, LV systems take care of spreading from pad-mounted transformers, and they keep things small and easy to reach. These arrangements often use box-type transformer substations to cut down on space while giving steady power. Engineers like LV for its easy setup—picture a 400V panel in a plant that runs motors and lights without needing thick covering.

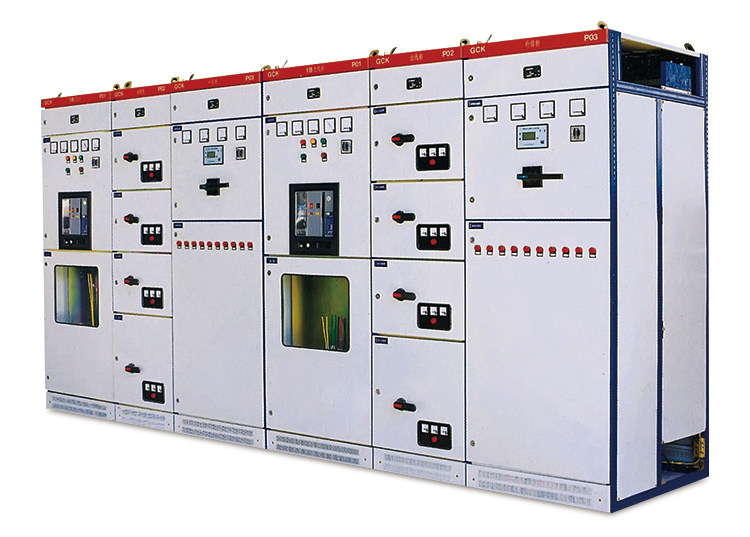

Real data from industry reports shows LV switchgear reducing energy losses by up to 15% in low-demand environments, making it ideal for cost-conscious projects. As an electrical substation manufacturer, SHENGTE's LV offerings, like those in our Low-Voltage Switchgear line, excel here by incorporating features such as modular designs that allow quick expansions. This isn't about cutting corners; it's about matching the gear to the task, ensuring downtime stays under 1% annually in well-maintained systems.

Transitioning from LV's strengths, it's clear that not all projects stay in the low range. Larger scales demand more robust handling, which brings us to HV's domain.

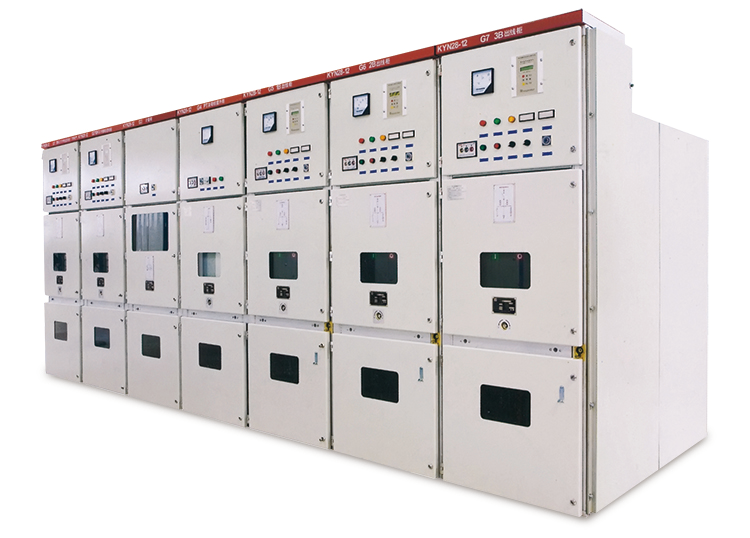

Where HV Takes Charge

HV switchgear steps in when power demands soar, such as in utility grids or large manufacturing plants. Operating at voltages from 3.3 kV to 33 kV, it efficiently transmits electricity over longer distances with lower current, cutting losses. Picture a compact substation transformer in an underground substation—HV gear ensures stable delivery to high-load areas like data centers or steel mills. Statistics from the International Electrotechnical Commission indicate HV systems can handle loads exceeding 1,000 kVA, far beyond LV's typical 630 kVA limit. As a compact substation manufacturer, SHENGTE integrates HV components in box-type transformer substations for urban environments where space is premium. These systems often include advanced insulation to withstand harsh conditions, preventing faults that could affect thousands. The key is reliability; HV switchgear in underground electrical substations has shown failure rates as low as 0.5% per year in monitored installations, making it the go-to for critical infrastructure.

Building on HV's role in heavy-duty scenarios, the interplay between voltage and current ties everything together. Higher voltage means lower current for the same power, which influences everything from cable sizes to heat management. This relationship is crucial in designs from electrical substation manufacturers, shaping how systems perform in real-world transformer substations.

The Voltage-Current Relationship

At its core, the voltage-current dynamic follows Ohm's law, but in practice, it dictates switchgear choice. For a 100 kW load, LV at 400V requires about 144 amps, while HV at 11 kV needs just 5.2 amps. This difference slashes conductor sizes and reduces I²R losses, which can account for 2-5% of energy waste in poorly matched systems. In pad-mounted transformers within compact substation transformers, this efficiency shines, especially in box-type transformer substations where heat buildup is a concern. Engineers must calculate these based on site specifics—SHENGTE's tools help simulate scenarios, showing how HV minimizes copper use by up to 80% in long runs. Yet, higher voltage brings risks like stronger arcs, demanding better insulation. Data from IEEE standards highlights how this balance prevents overloads, ensuring longevity in underground substations.

Key Technical Differences Unveiled

With basics covered, let's unpack the nuts and bolts that set LV and HV apart. These aren't just specs on paper; they affect daily operations in transformer substations and beyond. From materials to mechanisms, understanding these helps procurement teams align with project goals.

Design and Construction

LV switchgear often uses air-insulated designs in metal enclosures, keeping things simple and cost-effective. Components like circuit breakers fit into compact panels, ideal for underground electrical substations with limited space. Materials focus on durability—copper busbars rated for 1,000A continuous current are common. In contrast, HV demands gas-insulated or vacuum setups to handle higher stresses, with enclosures built to IP65 standards for weather resistance in pad-mounted transformers. This construction difference means HV gear weighs more—up to 2 tons per bay versus LV's 500 kg—but offers better fault tolerance.

Shifting focus from physical builds, the way these systems handle faults reveals another layer. Arc quenching isn't glamorous, but it's vital for safety in compact substation manufacturers' products, preventing disasters in high-stakes environments like underground substations.

Arc Quenching Technologies

Arcs can reach 10,000°C, so quenching them fast is key. LV switchgear relies on air or magnetic blowouts, extinguishing arcs in milliseconds for currents under 100 kA. This suits residential transformer substations where faults are rare. HV, however, uses SF6 gas or vacuum interrupters, quenching at speeds below 20 ms for faults up to 63 kA. Data from ABB studies shows vacuum systems lasting 30,000 operations, twice LV air types. In underground electrical substations, this tech minimizes explosion risks, with failure modes analyzed to keep MTBF over 50 years.

Beyond quenching, the brains of the operation—protection systems—ensure everything runs smoothly. These integrate sensors and relays, tailored differently for LV and HV to match their scales in electrical substation manufacturer designs.

Protection and Control Systems

LV systems use basic overcurrent relays and fuses, monitoring up to 1,000V with response times around 100 ms. They're straightforward, often with manual resets for small-scale box-type transformer substations. HV incorporates digital relays with IEC 61850 protocols, enabling remote monitoring and sub-50 ms trips. SHENGTE integrates PLCs in HV gear, allowing predictive maintenance via data logging—think vibration sensors flagging issues before they hit 5% deviation. Industry benchmarks from Siemens indicate HV controls reduce outages by 40% in compact substations. This sophistication comes with training needs, but pays off in large underground substations handling megawatts.

A Framework for Your Project Selection

Armed with technical insights, selecting switchgear boils down to matching it to your project's DNA. Factors like power needs and site limits guide the way, especially in transformer substation planning.

• Assessing Project Power Requirements: Start by calculating peak loads—use tools like ETAP software for simulations. For a 500 kW commercial building, LV at 690V suffices, but a 5 MW factory requires HV at 22 kV. Factor in growth; add 20% buffer as per NEC guidelines. In pad-mounted transformers, assess harmonics from inverters, which can spike currents by 15%. Costs aren't just upfront; they span the lifecycle. Weighing them helps balance budgets in box-type transformer substations, where initial savings might lead to higher ops expenses.

• Considering Space and Site Constraints: LV fits in 2×3 meter rooms, ideal for underground substations. HV requires 5×5 meters for clearance, per IEC standards. In dense areas, opt for compact designs—SHENGTE's box-type units shrink footprints by 30%. Site factors like soil type affect grounding; sandy areas need deeper pads for stability.

Beyond Selection: Cost and Safety in Focus

Selection is step one; ongoing factors like safety ensure longevity. These elements tie back to real operations in electrical substation manufacturer workflows.

• Safety and Maintenance Imperatives: Safety protocols demand arc-flash studies—LV risks category 2 PPE, HV up to 4. Maintenance involves thermography scans every six months, spotting hot spots over 10°C rise. In underground electrical substations, ventilation prevents gas buildup. Looking ahead, adaptability matters in evolving grids with renewables.

• The Future-Proofing Factor: Choose modular gear for upgrades—SHENGTE's LV Switchgear allows 20% capacity adds without rebuilds. Integrate smart tech for IoT monitoring, predicting failures with 95% accuracy. In compact substation transformers, plan for EV charging surges, upping demands by 30%.

Conclusion

LV and HV switchgear cater to distinct parts of the power landscape, with designs, technologies, and uses varying widely. LV excels in accessible, cost-effective setups for everyday needs, while HV powers large-scale efficiency. The right pick hinges on thorough evaluation of power demands, total costs, and safety priorities, always considering site-specific challenges like those in underground substations or transformer substations.

As a leading electrical substation manufacturer and compact substation manufacturer, SHENGTE brings expertise to these decisions. For customized advice on transformers for underground substations or compact substations, please contact our team immediately at juanie@shengtetransformer.com for a free consultation.
