Understanding Dry Transformer Safety: Key Risks and How to Prevent Failures

Dry transformer safety plays a vital role in stopping sudden breakdowns in places where power must never fail, such as hospitals, schools, and computer centers. Main dangers come from too much heat, strong electrical pressure, dirt in the air, and hard shakes. These problems slowly damage insulation and can lead to serious trouble. Smart protection steps include strong insulation material, constant temperature checks, well-planned air flow paths, and tough metal covers. Extra safety comes from early warning systems, even power sharing across phases, and easy-to-fix modular parts. Companies like SHENGTE build all these protective ideas directly into their units so the transformers stay steady for many years and keep both machines and people safe.

What Makes Dry Transformer Safety a Critical Concern in Power Systems?

Why Is Operational Safety Vital for Dry-Type Transformers?

Dry-type transformers have become common because they contain no oil and cannot catch fire easily. This clean design brings clear benefits, yet it also creates new challenges under heavy voltage and heat. Many units work inside important buildings where even a short power cut causes big problems.
The transformer carries an intelligent temperature controller. This device watches heat levels all the time and raises alarms before damage happens. Because of this careful control, the equipment lasts longer and workers stay out of danger.

How Do Environmental Conditions Affect Transformer Safety?

Dust, water drops, and chemical gases in the air slowly eat away at insulation strength. Units placed inside clean rooms suffer less, while outdoor models need thick protective boxes.
Strong casings with IP20, IP23, IP30, or IP33 ratings block dirt and moisture. Makers build these covers from aluminum alloy, stainless steel, or thick cold-rolled steel sheets. Without the right cover and regular checks, insulation can break down much sooner than planned.

Which Internal Risks Can Lead to Dry Transformer Failures?

How Does Thermal Overload Destroy Insulation Integrity?

Heat stands as the biggest enemy. When current stays too high for too long, the hard resin around the coils starts to crack and lose strength. Blocked air paths make the problem worse.
Engineers solve part of this danger by adding axial cooling air ducts inside the coils. These open channels let cool air move straight through the center and carry heat away faster. Even with good ducts, constant temperature watching remains necessary to stop hidden hot spots.

Why Does Electrical Pressure Need Careful Design and Monitoring?

Sudden voltage spikes or unbalanced loads push heavy stress across insulation layers. Over time, tiny sparks inside the resin eat small holes that grow larger.
Good designs add surge protectors and use foil windings on the low-voltage side. Foil structure removes the twist problem found in normal round wire, so magnetic forces stay even from top to bottom. This balance lowers local heat pockets and keeps the insulation safe longer.

How Do External Factors Add Operational Danger?

What Role Does Mechanical Shock Play in the Damage of Transformers?

Hard bumps during transport or earthquakes can shift the iron core sheets or loosen coil supports. Small shifts later turn into noise, extra heat, or sudden failure.
Strong clamps and special rubber pads stop movement. The core column receives tight F-class weft-free straps, and the whole surface gets an epoxy resin coat. This coating cuts idle loss, current waste, and running noise while keeping everything firmly in place.

Why Do Dirt and Moisture Cause Hidden Threat to Dry Transformers?

Dry units have no oil seal, so dust can settle directly on the coils and block cooling. Salt air near the sea or factory chemicals slowly attack the resin surface.
Layer-by-layer DMD epoxy pre-impregnated cloth forms one solid block when heated. This strong build fights moisture and dirt better than older paper types, yet regular cleaning still matters.

What Steps Should be Taken to Keep Dry Transformers Reliable?

How Do Early Warning Systems Prevent Big Problems?

Modern checks catch trouble long before it grows. Heat cameras spot warm areas quickly, and special sensors listen for tiny sparks inside the insulation.
SHENGTE units come with built-in intelligent temperature controllers that send signals the moment heat rises too high. This early notice lets workers fix small issues and avoid full shutdowns.

Why Do Proper Load Management Prevent Overstress Conditions?

When one phase carries much more load than the others, that side gets hotter than the rest. Smart control systems watch the three phases and move power smoothly to keep heat even everywhere. Proper size choice also leaves extra room for future growth without danger.

How Do Material Choices Build  Influence Long-Term Safety Performance?

Why Do Strong Insulation Classes Make a Difference?

Class F or Class H insulation can handle higher heat for years without breaking down. DMD epoxy cloth between every coil layer hardens into one tough piece that resists cracks even when temperature changes often.

How Does Core Construction Affect Magnetic Stability and Losses?

High-grade cold-rolled silicon steel sheets form the magnetic core in three-step fully slanted joints. This careful build lowers empty-running loss and keeps the unit quiet in offices or homes. Strong side clamps stop sheets from buzzing under load.

Which Features Should Be Chosen for the Safest Results?

What Do Design Elements Improve Fire Resistance in Indoor Installations?

Special flame-proof resin and open ventilation covers let heat escape yet stop fire from spreading. Cross-flow top-blowing cooling fans bring strong air with low noise and nice looks. These fans also raise short-time overload ability while staying safe.

Why Does Modular Construction Support Easier Inspection and Maintenance?

Separate coil sections allow workers to fix only the damaged part instead of replacing the whole transformer. SHENGTE offers many choices so each customer gets the right mix of safety and simple service.

How to Select the Right Transformer for Your Needs?

When Is a High-Capacity Unit More Suitable for Industrial Loads?

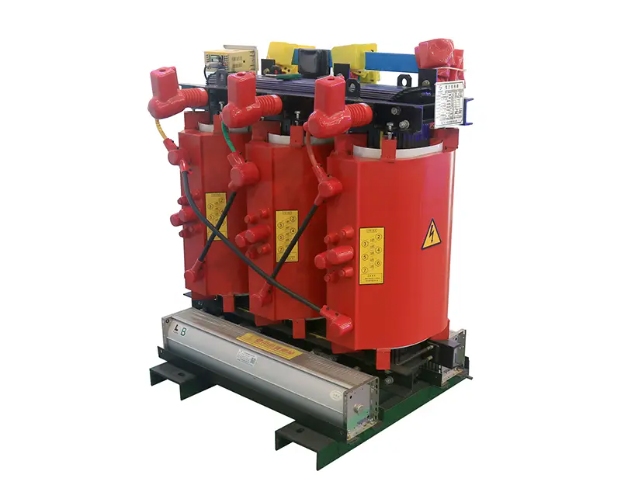

Heavy factories with changing demand do well with models like the SCB10 2500 KVA 10 / 0.4 Kv 3 Phase High Voltage Cast Resin Dry Type Power Transformer.  The following numbers promise steady power even during peak hours.

· No-load Loss (W): 3600;

· Load Loss (W): 17100;

· No-load Current (%): 0.3;

· Short Circuit Impedance (%): 6

Where Does a Compact Indoor Unit Fit Best in Commercial Settings?

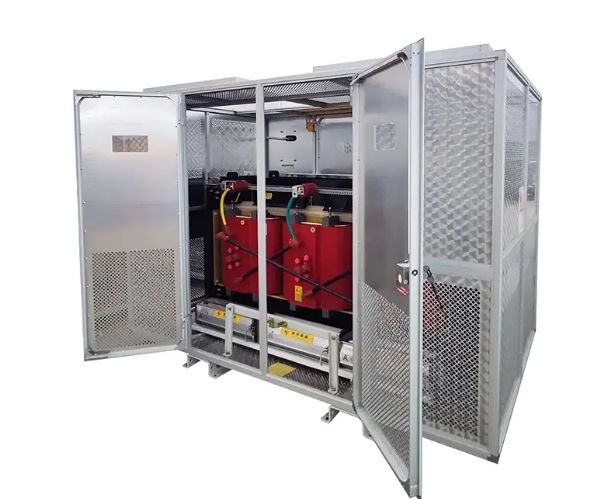

Tight city buildings choose smaller yet strong units such as the SCB10/11 160 KVA 10 /11 0.4 Kv 3 Phase High Voltage Indoor Cast Resin Dry Type Power Transformer. The compact size plus high protection cover fits perfectly inside electrical rooms.

Why Is SHENGTE a Trusted Partner for Safe Power Distribution Solutions?

SHENGTE leads the market by always choosing the best research, strict quality steps, and custom solutions for every project. From silicon steel cores to foil windings and full resin casting, every part shows the focus on safety and long life. The core column is bound with F-class weft free straps, and the surface is wrapped with epoxy resin to reduce no-load loss, no-load current, and core noise. Customers who need trusted power turn to SHENGTE for units that simply work year after year.

FAQs

Q: Can dry-type transformers work outside safely?
A: Yes, when placed inside proper weather-proof boxes that stop rain, sun, and salt damage.

Q: How long do well-cared-for dry transformers usually last?
A: More than twenty-five years is common when installation, balanced loading, and planned checks.

Q: Are cast resin units safer than oil units where fire danger is high?
A: Yes. They contain no flammable liquid and use materials that stop flame spread, making them much safer in crowded or sensitive places.
