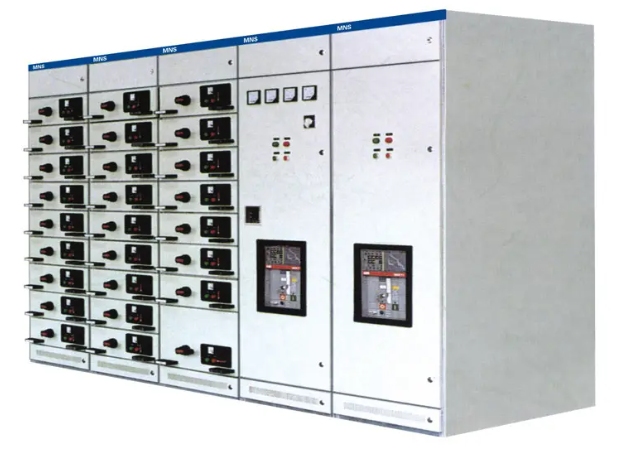

Metal Clad Switchgear vs Metal Enclosed Switchgear: What Is the Real Difference Between Them?

Choosing between metal-clad and metal-enclosed switchgear is not a semantic exercise, but directly shapes fault containment, operator safety, maintenance strategy, and long-term reliability of your power distribution system. If you manage substations, industrial plants, or critical infrastructure, the wrong architectural choice can lead to cascading outages, higher lifecycle costs, and operational constraints that are difficult to reverse later.

Both types appear similar from the outside because they all have steel cabinets, medium-voltage ratings, internal breakers, and structured bus systems. However, internally, the design philosophy is fundamentally different. This article clarifies the real technical distinctions so you can evaluate which architecture better matches your operational priorities.

What Defines Metal-Clad Switchgear?

Metal-clad switchgear is not just about enclosure strength, but is defined by functional compartmentalization and withdrawable architecture.

Why does compartment separation matter?

A metal-clad design separates critical components into independent metal compartments, typically including a breaker compartment, busbar compartment, cable compartment, and control compartment. Each section is isolated by grounded metal barriers.

This structure directly affects safety and fault behavior. When an internal fault occurs, the damage remains localized to a single compartment instead of spreading across the entire cabinet. Besides, it protects operators during maintenance since live sections remain physically segregated.

In practical deployment, indoor metal-clad withdrawable switchgear, such as KYN28A-12 switchgear, is widely applied for power reception, distribution, motor control, protection, monitoring, and measurement in industrial facilities and secondary substations. Its design supports safe replacement of circuit breakers without shutting down the whole lineup.

Why is a withdrawable structure operationally valuable?

Withdrawable breakers allow you to isolate, test, or replace the breaker without dismantling the cabinet, thus offering faster maintenance cycles, reduced outage windows, safer testing procedures, and higher equipment availability.

For systems where uptime is critical, the structural feature becomes a decisive advantage rather than a convenience.

What Characterizes Metal-Enclosed Switchgear?

Metal-enclosed switchgear follows a different philosophy—compact integration rather than deep compartment isolation.

Why is a compact structure often preferred?

Metal-enclosed units are usually fixed-type designs. Components share a common enclosure with internal partitions but not the same level of metallic isolation found in metal-clad structures, enabling a smaller footprint, lower initial cost, faster installation, and simplified system layout.

Therefore, metal-enclosed switchgear is especially suitable for ring networks, distribution substations, urban grids, and commercial power systems where space efficiency and scalability matter.

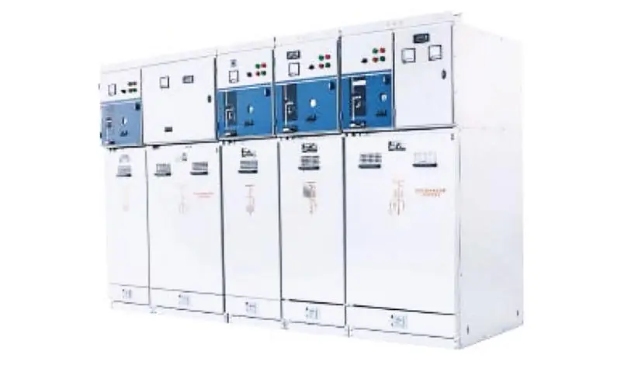

A representative example is the XGN15-12 box type fixed AC metal closed sulfur hexafluoride loop switchgear, which is designed as an indoor 12 kV distribution device for factories, residential areas, high-rise buildings, urban power grids, and end-user substations. It uses a modular structure that can expand flexibly based on system design. Its internal structure is divided into functional rooms such as the bus room, switch room, mechanism room, instrument room, and cable room.

Why does sealed insulation change maintenance behavior?

In many metal-enclosed designs, key components such as the load switch and arc-extinguishing chamber are sealed within epoxy insulation and filled with sulfur hexafluoride gas, thus achieving long-term gas sealing with fewer leakage points, reduced need for routine internal maintenance, and high stability for continuous operation.

However, it also means internal components are not designed for frequent replacement. Instead of component-level service, the focus shifts toward modular replacement when faults occur.

How Do the Two Architectures Behave During Faults?

Fault behavior is where structural differences translate into real-world consequences.

Why does metal-clad design limit fault escalation?

Because metal-clad switchgear uses grounded metallic barriers between compartments, arc faults are more likely to remain contained within the faulted section, which reduces pressure propagation, thermal damage to adjacent components, risk to nearby personnel, and probability of system-wide shutdown.

This characteristic makes metal-clad architecture better aligned with environments where high fault energy and operational complexity coexist, such as heavy industry or large substations.

Why can metal-enclosed still be reliable in distribution systems?

Metal-enclosed switchgear compensates for lower compartment isolation through design simplicity and sealed components. The sulfur hexafluoride sealed load switch structure reduces internal failure probability, while the modular ring network design supports flexible topology.

For distribution networks where load levels are moderate and operational environments are predictable, the balance often delivers a practical combination of safety, economy, and performance.

Which One Fits Your Application Better?

The correct choice depends less on labels and more on how your system behaves over time.

Do you prioritize uptime and maintainability?

If your facility demands frequent maintenance, breaker replacement, protection testing, and minimal downtime, metal-clad switchgear usually aligns better with these requirements. Withdrawable structures simplify lifecycle management and reduce operational friction.

Are space efficiency and cost optimization more critical?

If your system focuses on compact deployment, moderate load density, and scalable urban distribution, metal-enclosed architecture offers practical advantages. Its smaller footprint, modular extension capability, and simplified installation reduce both capital and engineering overhead.

A well-structured example of this approach is the XGN15-12 box type fixed AC metal-enclosed sulfur hexafluoride ring switchgear, which supports flexible ring network configuration, standardized compartment layout, and sealed insulation for long-term stable operation. Its ability to combine multiple units into a ring or extend into terminal substations reflects the strengths of the metal-enclosed philosophy.

Where Does SHENGTE Fit Into This Technical Landscape?

At this point, it becomes important to consider not only architecture, but also execution quality.

SHENGTE has spent more than 15 years focusing on power distribution equipment manufacturing, supplying high and low-voltage switchgear systems for industrial, commercial, and utility applications. Our product portfolio includes metal-clad withdrawable structures and metal-enclosed ring network systems, enabling engineers to choose architecture based on project logic rather than supplier limitations.

Our company operates integrated processes covering design, production, testing, and assembly within our own facility, which strengthens consistency across structural accuracy, insulation integrity, and enclosure durability. This manufacturing depth is particularly relevant when dealing with medium-voltage equipment, where dimensional tolerance, grounding continuity, and internal partition precision directly affect operational safety.

How Does Fixed Metal-Enclosed Technology Support Modern Networks?

Metal-enclosed designs are often underestimated because of their simpler structure, but in fact, modern fixed-type switchgear can be highly sophisticated.

Why does modular expansion matter in urban grids?

The internal bus structure of metal-enclosed ring switchgear allows expansion to either side, supporting configurations such as three-unit ring networks, terminal substations with four or more cabinets, and progressive network expansion without redesign, which allows distribution planners to grow systems gradually instead of oversizing infrastructure upfront.

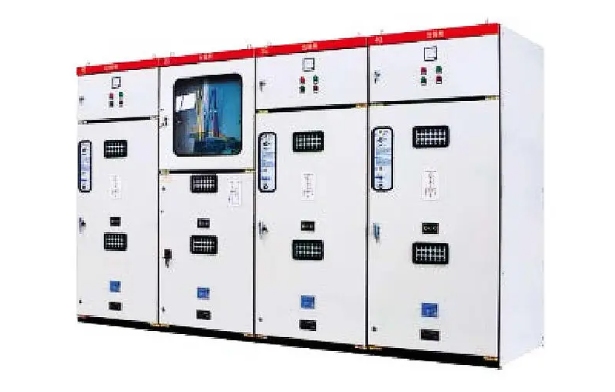

The HXGN-12 AC high-voltage fixed metal-enclosed loop switchgear follows this principle by supporting standardized internal room layout, compact cabinet structure, and flexible network topology for indoor medium-voltage distribution environments. Its design approach reflects the strengths of metal-enclosed systems—scalability, space efficiency, and simplified operational management.

What Are the Real Decision Factors You Should Evaluate?

The most common mistake is treating this as a product-level decision rather than a system-level decision.

How often will equipment be serviced?

If your operational model involves frequent protection testing, breaker replacement, or condition-based maintenance, withdrawable metal-clad systems reduce friction and risk.

How constrained is your installation space?

In commercial buildings, urban substations, and prefabricated power rooms, cabinet depth and layout flexibility can become decisive. Metal-enclosed systems often integrate more smoothly into these constraints.

What is your acceptable fault risk profile?

Facilities with high fault levels, high short-circuit current, or critical process continuity benefit more from the compartmental protection of metal-clad designs.

Why the Difference Matters More Than the Label

Metal-clad and metal-enclosed are not competing marketing terms, but represent two different engineering trade-offs:

l Metal-clad prioritizes segregation, serviceability, and fault containment

l Metal-enclosed prioritizes compactness, integration, and deployment efficiency

Neither is universally superior, and the better choice is the one aligned with your operational reality. When selected properly, both architectures can deliver long-term reliability, while both can become bottlenecks regardless of nominal specifications when selected poorly.

FAQs

Q1: Is metal-clad switchgear always safer than metal enclosed?
A: Not necessarily. Metal-clad offers stronger compartment isolation, which improves fault containment and maintenance safety. However, modern metal-enclosed designs use sealed insulation and standardized structures that provide high reliability in distribution environments when applied correctly.

Q2: Can metal-enclosed switchgear support network expansion?
A: Yes. Many metal-enclosed ring switchgear systems are designed with expandable bus structures that allow flexible configuration, such as forming ring networks or extending to multi-cabinet terminal substations.

Q3: Which option is better for long-term maintenance efficiency?
A: Metal-clad switchgear generally supports easier long-term maintenance because of its withdrawable breaker structure and compartment isolation. Metal-enclosed systems reduce routine maintenance needs through sealed components, but often rely on modular replacement when faults occur.
