Distribution systems continue to develop toward greater load concentrations, more rigorous safety standards, and increased incorporation of distributed generation sources. Conventional pole-mounted systems or enclosed indoor facilities frequently face difficulties satisfying modern demands about protected zones, installation efficiency, and overall ownership expenses throughout the equipment’s lifespan.

Pad mounted transformers have consequently emerged as a preferred option across many municipal, business-related, and industrial distribution scenes. The enclosed design, compact space requirements, and incorporated protective features enable power companies and project developers to strengthen functional security while preserving effective electricity supply. The article explores the contributions of pad mounted transformers toward creating more secure and streamlined electrical networks from both engineering and practical standpoints.

Why Are Pad Mounted Transformers Becoming Standard in Modern Distribution Networks?

The growing preference for pad mounted transformers reflects significant shifts in network layouts and restrictions on available land.

How Do Compact Designs Simplify Urban and Industrial Installations?

Pad mounted transformers integrate medium-voltage control, voltage conversion, and low-voltage supply functions in one protective housing. Such unified structures decrease the complexity associated with site preparation work and meet the needs of overhead line structures or expansive indoor transformer substations.

In crowded urban districts, industrial complexes, and renewable energy sites, equipment positioned at ground level permits compliance with municipal regulations while ensuring adequate physical separation between live electrical parts and surrounding public zones.

How Do Ground-Level Installations Improve Network Accessibility?

Ground-level installations directly enhance convenience during routine inspection, operational switching procedures, and necessary repair activities. Maintenance personnel conduct standard tasks without relying on raised work platforms or working inside restricted indoor areas, thereby lowering job-related dangers and accelerating response intervals during service interruptions. Improved accessibility also facilitates more regular assessments of equipment condition, supporting sustained operational reliability.

How Do Pad Mounted Transformers Improve Operational Safety?

Enhanced protection stands among the foremost reasons driving widespread acceptance of pad mounted transformer technology.

How Do Enclosed Structures Protect People and Equipment?

Pad mounted transformers feature tightly sealed, vandalism-resistant housings that completely separate energized elements from the external surroundings. Secure locking mechanisms combined with distinctly partitioned cable connection points substantially decrease the unintended contact, deliberate tampering, or improper handling by unauthorized individuals.

This protective approach is especially valuable in residential neighborhoods and business districts, where reducing the public interaction with electrical installations remains a critical priority.

How Do Built-In Protection Systems Reduce Fault Impact?

Factory-installed protection components facilitate the rapid detection and isolation of disturbances directly in the transformer compartment. Through containment of fault effects, these mechanisms help avoid widespread service interruptions and lessen excessive thermal and mechanical loading imposed upon equipment located further upstream. Consequently, networks achieve greater overall security accompanied by diminished incident consequences.

How Do These Transformers Enhance Distribution Efficiency?

Apart from bolstering safety measures, pad mounted transformers deliver noteworthy improvements concerning energy conservation and effective handling of electrical demand.

How Do Optimized Designs Reduce Energy Loss?

Modern pad mounted transformers incorporate optimized core magnetic materials and improved coil structures designed specifically to minimize both no-load and load losses. Decreased energy dissipation results in substantially lower total expenses during the entire operational period, particularly in systems characterized by steady baseline requirements.

How Do Integrated Substations Improve Power Flow Management?

By combining switching and transformation functions in one unit, pad mounted substations permit a more seamless configuration of feeder circuits and equitable distribution of electrical loads. Network controllers gain increased adaptability when adjusting voltage levels and directing power movements, thereby promoting consistent performance amid fluctuating consumption patterns.

How Can Proper Equipment Selection Reduce Lifecycle Costs?

Practical efficiency benefits materialize only when chosen transformers correspond closely with genuine field circumstances.

How Do Modular Solutions Simplify Expansion?

Pad mounted transformers accommodate incremental network development through modular approaches. Whenever consumption requirements rise, operators install supplementary units or replace existing ones with minimal alterations to civil infrastructure. Such adaptability curtails future investment needs and prevents long-term interruptions to customer service.

How Does Reduced Maintenance Improve ROI?

Hermetically sealed compartments and improved cooling designs lower the frequency of maintenance. Lower inspection intervals and fewer requirements for corrective measures contribute to elevated financial returns, especially across widely dispersed installations containing multiple distribution points.

Which Technical Factors Should Guide Transformer Selection?

Proper selection of pad mounted transformers requires a comprehensive assessment of various network characteristics.

How Do Capacity and Load Profiles Influence Choice?

Rated power output ought to correspond accurately to existing utilization levels while simultaneously accounting for anticipated future increases. Insufficient capacity invites dangerous overheating conditions, while excessive sizing generates avoidable inefficiency. Precise evaluation of expected demand patterns ensures an appropriate balance between performance capability and economical operation.

How Do Environmental Conditions Affect Performance?

Environmental temperature, humidity, pollution level, and degree of site exposure all exert influence upon insulating material integrity and cooling efficiency. Units designed specifically for severe environments exhibit enhanced functional stability and achieve long-term operational life.

What Role Does Reliable Manufacturing Play in Grid Performance?

Excellent design characteristics alone are inadequate without stable production processes delivering consistent quality.

How Does Engineering Experience Affect Equipment Reliability?

Producers possessing extensive technical expertise and strict testing procedures ensure the successful conversion of theoretical specifications into stable real-world performance. Steady oversight throughout manufacturing stages minimizes performance variations and strengthens durability across long-term reliability.

How Does Technical Support Influence Long-Term Operation?

Prompt and knowledgeable assistance during initial deployment, problem resolution, and ongoing administration simplifies management responsibilities. Well-established communication pathways reduce downtime and uncertainties associated with daily functioning.

How Does Industrial Experience Translate into Deployment Confidence?

In extensive distribution initiatives, practical experience derived from varied implementation contexts substantially enhances project reliability.

Having focused on manufacturing distribution-class transformers for over fifteen years exclusively, SHENGTE develops thorough competencies, including conceptual designs, internal production processes, comprehensive performance verification, and complete system assembly. Our products include pad mounted transformers, conventional oil-filled designs, dry-type configurations, pre-assembled substation packages, and combined high-voltage and low-voltage integrated solutions. We consistently comply with strict quality protocols and recognized global standards, enabling us to deliver reliable, enduring distribution infrastructure tailored for electric utilities and project developers.

Which Pad Mounted Transformer Solutions Suit Different Grid Demands?

Varied consumption scenarios specifically require configured transformer assemblies.

How Do Medium-Capacity Units Serve Urban Distribution Needs?

The ZGS11 630kVA 10kV 0.4kV American Style Box-Type Power Pad-Mount Substation Transformer is particularly suitable for housing developments, retail centers, and industrial parks, which require compact structures and trustworthy medium-level power delivery.

How Do Higher Capacity Units Support Growing Load Centers?

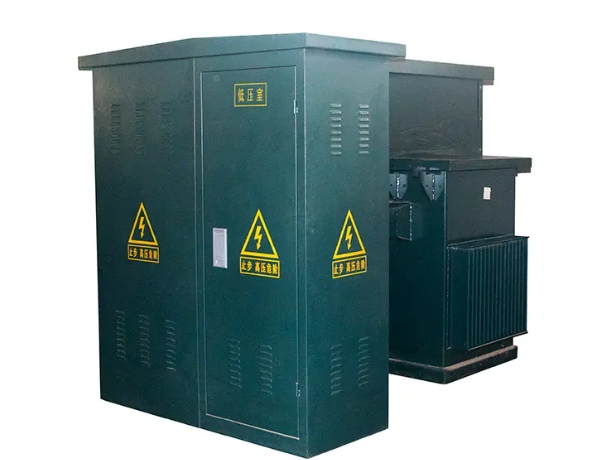

For rapidly developing consumption hubs and sites demanding substantial infrastructure support, the ZGS11 1000kVA 10kV 400V 50Hz Frequency Box-Type Substation Pad mounted Transformer supplies higher production capacity while preserving essential safety and integration benefits of pad mounted architecture.

How Will Pad Mounted Transformers Support Future Smart Grids?

As grids evolve, pad mounted transformers maintain inherent compatibility with anticipated technological achievements.

How Do Smart Monitoring Features Improve Grid Stability?

Connection to embedded temperature sensors and monitoring devices permits continuous tracking of functional parameters. Predictive insights help minimize unexpected service losses and enhance effective asset management.

How Do Compact Substations Support Renewable Integration?

Pad mounted substation assemblies facilitate the incorporation of distributed generation resources, including photovoltaic and energy storage systems, thereby enabling adaptable connection arrangements and localized demand balance.

Conclusion

Pad mounted transformers integrate protective measures, operational effectiveness, and capacity for future growth in a comprehensive distribution system. The protective housing minimizes exposure risks to surrounding populations, carefully designed components enhance energy conservation, and adaptable designs accommodate progressive network development.

For utilities and developers operating in complex, high-density environments, pad mounted transformers establish a structurally sound basis for durable electrical systems prepared for future requirements.

FAQs

Q1: Are pad mounted transformers safer than pole-mounted transformers?
A: Certainly. Ground-based enclosed configurations separate energized sections effectively and markedly decrease both public interaction hazards and risks encountered during operational activities.

Q2: Do pad mounted transformers increase maintenance workload?
A: Not at all. Hermetic sealing combined with advanced thermal management arrangements lessens servicing intervals relative to conventional installation methods.

Q3: Where are pad mounted transformers most effectively deployed?
A: Typical applications include residential subdivisions, commercial business zones, industrial estates, renewable generation facilities, and densely populated municipal distribution systems.
